This New Model Durable Manual Rotary Micrtome is a new-generation microtome specially developed for modern histology.. This model is equipped with imported roller guide rails and high-precision roller screws. This is an ideal device for use in histology due to its ergonomic design, compact structure, high precision, and stable and reliable performance.
Technical Specifications of Durable Manual Rotary Micrtome
Section thickness setting range: 0-60um
Trimming thickness range:1～60μm
■ Minimum Setting of Sectioning Thickness: 0.5μm ■ Maximum Specimen Size: 60×50 mm ■ Total Horizontal Specimen Feed: 24 mm ■ Vertical Specimen Stroke: 52 mm ■ Specimen Retraction: 0 - 28 mm ■ Trimming Thickness: 1 - 60μm ■ Dimensions: 565×440×285mm (W×D×H) ■ Net weight: 28kg
■ Ergonomic design, greatly reducing the discomfort associated with long hours of operation;

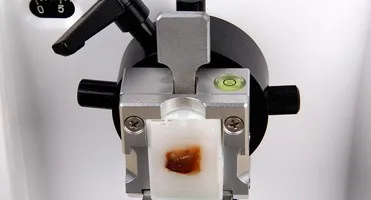

■ Ideal sectioning for using either a standard blade or disposable blade; ■ Cassette holder can be locked at any position along each of the three axes, enabling easy adjustment of specimen slicing angle; ■ Right operation hand-wheel can be locked at any position, providing maximum safety and convenience; ■ Specimen retraction and replaceable cassette holder system; ■ Blade holder base can be moved forward-or-backward and left-or-right flexibly to eliminating any contact of the fingers with the blade; ■ Convenient N-type blade holder and E-type holder for disposable blades; ■ The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade; ■ Easy-to-clean well-sealed housing does not need to be removed for cleaning; ■ Large-volume waste tray is easy to remove and clean.
