2015-2016 Progressive Tissue Embedding and Cooling System

FOB Reference Price:Get Latest Price
  • >=2
    US $2080.00
Supply Ability:
100 Set/Sets per Month
Port:
Ningbo, Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Bacteria Analysis System
Brand Name:
Dailymag
Model Number:
DMG-BM BL
Place of Origin:
Zhejiang, China (Mainland)
Section thickness range:
0-60um
Working Voltage:
AC220V 50Hz /AC110V 60Hz
Certificate:
CE ISO13485 FDA
Product net weight:
26kg(BM) 27kg(BL)
BM tissue embedding center Dimension:
525x550x385mm (WxDxH)
BL Cooling Plate dimension:
590x345x385mm (WxDxH)
Language version:
English. Chinese
Packaging & Delivery
Packaging Details
Wooden Box with cushion
Delivery Time
Shipped in 5 days after payment
Product Description

2015-2016 BM & BL Tissue Embedding & Cooling System technical specifications:


■ 70℃ is set as the paraffin-heating temperature based on the latest internationally accepted principles indicating that tissue embedded in paraffin might be damaged due to excessive shrinkage of paraffin blocks when heating temperature is above 70℃

■ Paraffin Chamber Capacity: 3 liters

■ Temperature Range of Forceps Wells: 55 - 70℃

■ Temperature Range of Paraffin-melting Chamber: 55 - 70℃

■ Temperature Range of Thermal Storage Compartments: 55 - 70℃

■ Temperature Range of Heated Working Areas: 55 - 70℃

■ Temperature Range of Paraffin dispenser: 55 - 70℃

■ Temperature Control Precision: ±1%
■ Paraffin Flow Control: Paraffin flow control via finger touch plate and optional foot pedal
■ Fully programmable ON/OFF control allows automatic system start and stop anytime weekly
■ Working Temperature of Cryo-Module: ≤ -20℃
■ Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
■ Power: 650W (BM Tissue Embedding Center), 300W (BL Cooling Plate)
■  Dimensions: 525×550×385 mm (W×D×H) (BM Tissue Embedding Center)
     590×345×385 mm (W×D×H) (BL Cooling Plate)
■ Net weight: 26kg (BM Tissue Embedding Center); 27kg (BL Cooling Plate)

Main Features

■ Fully programmable computer controls allow automatic system start and stop anytime (weekly);

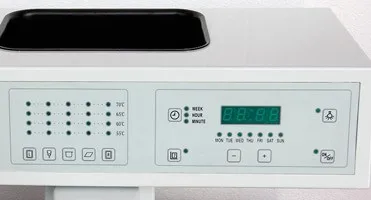

■ Temperature is controlled by microprocessors made in the USA and they are displayed using color-changing LEDs to enable clear visibility of working status;

■ Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other;

■ Flexible heating mechanism overcomes the shortcomings of traditional technology that can result in excessive temperature differences. System provides fast heating and precise temperature control. In addition, the dual-protection from overheating is safe, reliable and energy-saving;

■ Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system;

■ Flexible module configuration options through a design which separates the Cryo Module from Embedding Module;

■ Safe and reliable low-voltage illumination system;

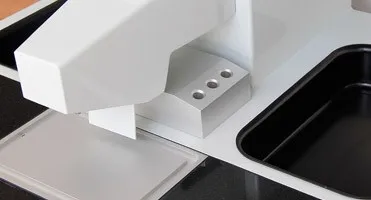

■ Heated working plate and forceps wells make tissue embedding more convenient;

■ Large granite working area eases the cleanup of excessive paraffin.

Certfications
ISO13485  CE  FDA
