Advanced Carousel type Vaccum Automated Tissue Processor

FOB Reference Price:Get Latest Price
  • >=2 Sets
    US $6880.00
Report Suspicious Activity
Overview
Quick Details
Type:
Bacteria Analysis System
Brand Name:
Dailymag
Model Number:
DMG-TS6B
Place of Origin:
Zhejiang, China (Mainland)
Number of Paraffin Cups:
3
Dimension:
Diameter 670x680mm (H)
Tissue processing steps:
12 steps
Working Voltage:
AC220V 50Hz /AC110V 60Hz
Operation Environment Temperature:
0-80degree
Certificate:
CE ISO13485 FDA
Product net weight:
60kg
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Box with cushion
Port
SHANGHAI/NINGBO
Lead Time :
Shipped in 5 days after payment
The 2016 Carousel type  Vacuum Automated Tissue Processor is an advanced microprocessor-controlled tissue-processing device. Due to its ideal ergonomic design, reasonable structure, easy operation, prompt processing, and high QPR, this device is an ideal choice for human or animal/plant tissue dehydration in pathology laboratory of hospitals, colleges/universities, and research institutes.

Carousel type Vacuum Automated Tissue Processor technical specifications:

(Carousel type)


1. Tissue Processing Steps: 12 steps


2.Number of Reagent Cups: 9, with a volume of 1.2L (2.3L for a larger volume)

3.Number of Paraffin Cups: 3, with a volume of 1.0L (1.8L for a larger volume)

4.Temperature Range: 45-85℃ (±3℃)

5.Program: Duration in each cup: 0-10 hours (10 programs)
   * Maximal turn-on delay: 1 month

6.Minimum time interval setting: 1 min

7.Vacuum Degree: 0.053MPa

8.Frequency of basket stirring: ≥10 times/hour, 30 sec for each time

9.Size of Basket: Φ95×80mm;

10.Dimensions: 670 (Diameter)× 540 (Height, 680 mm at the highest point)

11.Working Voltage: AC 220V±10% 50Hz (standard model), an additional converter is needed for 110V

12.Power: 500W (1.2L), 1000W (2.3L)

13.Net weight: 60kg



Main Features

 Entire operation process is controlled by a PLC through a touch screen, easy to operate, reliable and stable

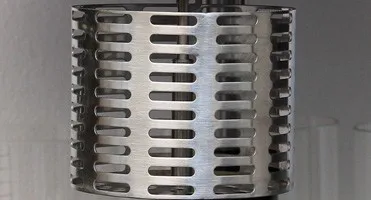

 Tissue specimen basket can be placed in a cup at any station by a mechanical arm, flexible and easy to operate

 Multiple safety protection mechanisms including power failure alert and operation error protection

 Stirring during dehydration process ensures adequate contact of tissue with reagents and paraffin to improve dehydration performance

 Temperature of paraffin cup is precisely controlled by a constant temperature control system and the inner surface of the cup is TEFLON-coated, contamination-resistant, and corrosion-resistant

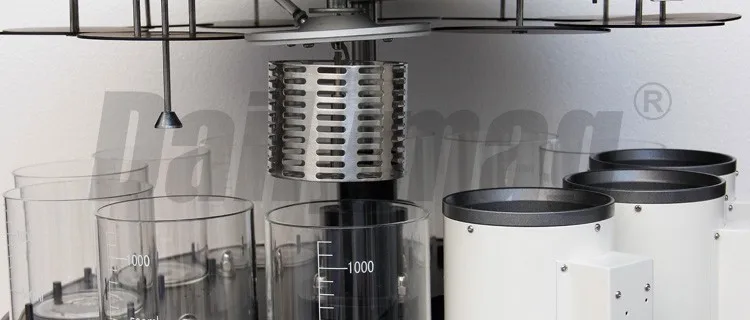

 There are nine 1.2-L ( or a larger volume of 2.3L) medical glass beakers are used as processing cups, allowing clear observation of tissue changes during the operation

 To enhance dehydration strength, this device is equipped with a vacuum pump. Other than paraffin cups, optional vacuum-assisted dehydration of all cups can be individually preset
