Linear Actuator for Automation Furniture

FOB Reference Price:Get Latest Price
US $14.8-29.8 / Pieces | 10 Piece/Pieces Sample of ST linear actuator is available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Dailymag
Model Number:
ST
Certification:
CE
Voltage:
12V 24V
Max. Thrust:
100-1500N
Max. Speed:
5-30mm/s
Stroke Range:
50-600mm(2"-24")
Min. Install Dimension:
S+105mm(option)
Noise Level:
Low Noise Design,dB<48A
Ambient Temp:
-5°C(23F) to +40°C(104F)
Usage:
Boat,Car,Home,etc
Application:
Dentist Chair,Pet Hospital,etc
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month Large quantity of ST linear actuator is available
Packaging & Delivery
Packaging Details
Standard export carton or wooden case for ST linear actuator
Port
Ningbo or Shanghai
Lead Time :
10-15 days

_01_02

Product Description

ST Series Electric Linear Actuators (Electric Linear Actuator) are all-purpose products. They have smart design and excellent performance. They are widely used in furniture, home beds, office tables, massage equipment, sporting equipments and so on.

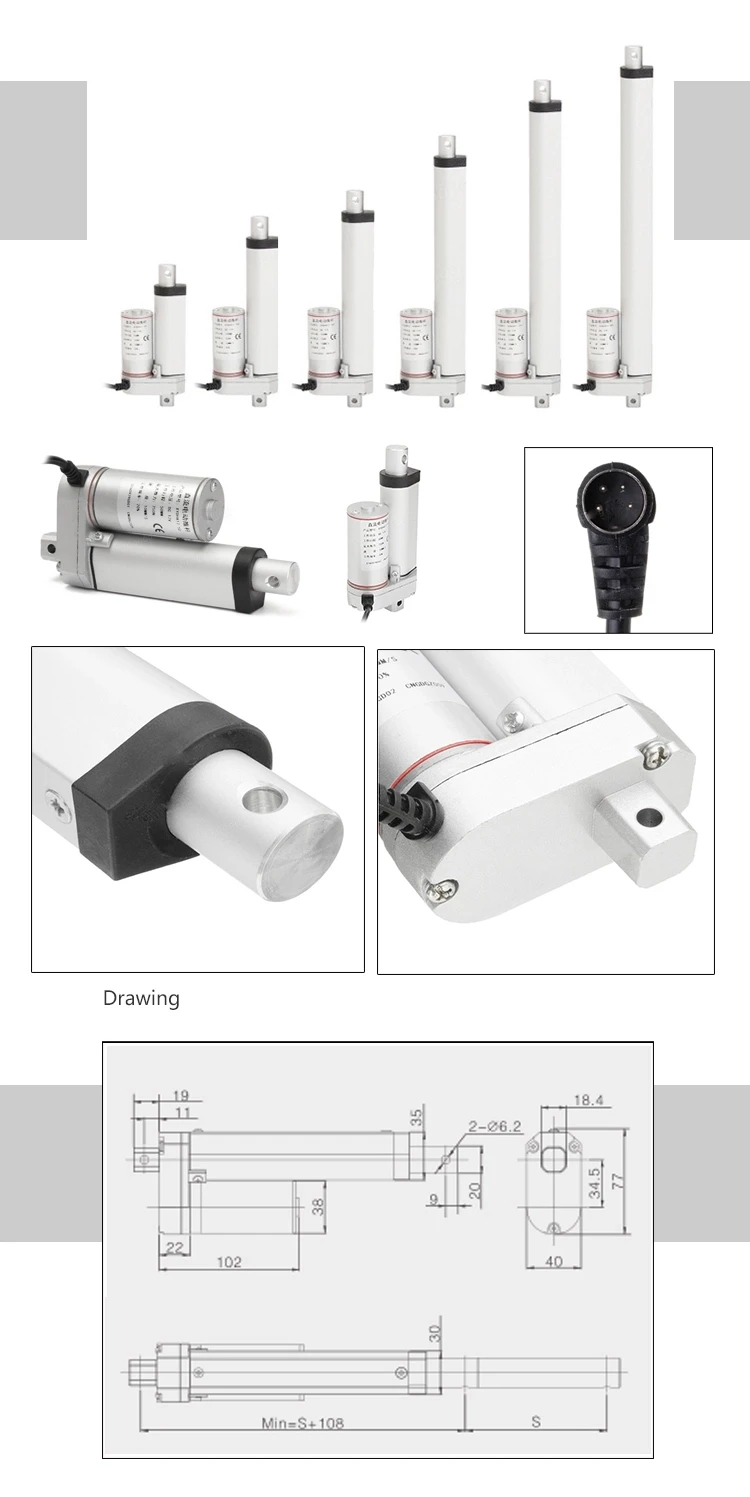

ST series Linear actuator
Specification
ModelST 750
Voltage24VDC or 12VDC
Standard Stroke:Stroke Length:
50mm/2 inch
100mm/4 inch
150mm/6 inch
200mm/8 inch
250mm/10 inch
300mm/12 inch
Max Thrust:750N 1500N OR Customized
Free Load Speed:5mm/s~30mm/s
Rated Load Speed:5mm/s
Duty Cycle10% 2 mins continuous Max
Ambient Temperature-26℃(-14.8F)~+65℃(149F)
Protection ClassIP56
ColorBlack, Grey and White
Build in Limited Switch:not adjustable after leaving factory
Low noise design:dB<50(A); The inspection method is in accordance with DS/EN ISO03746 while linear actuator is unloaded.
CertificateCE
Optional function:Reed Switch/Hall Sensor/Push only/Quick Release


Product Description

_04_05_06_07_08_09_10
