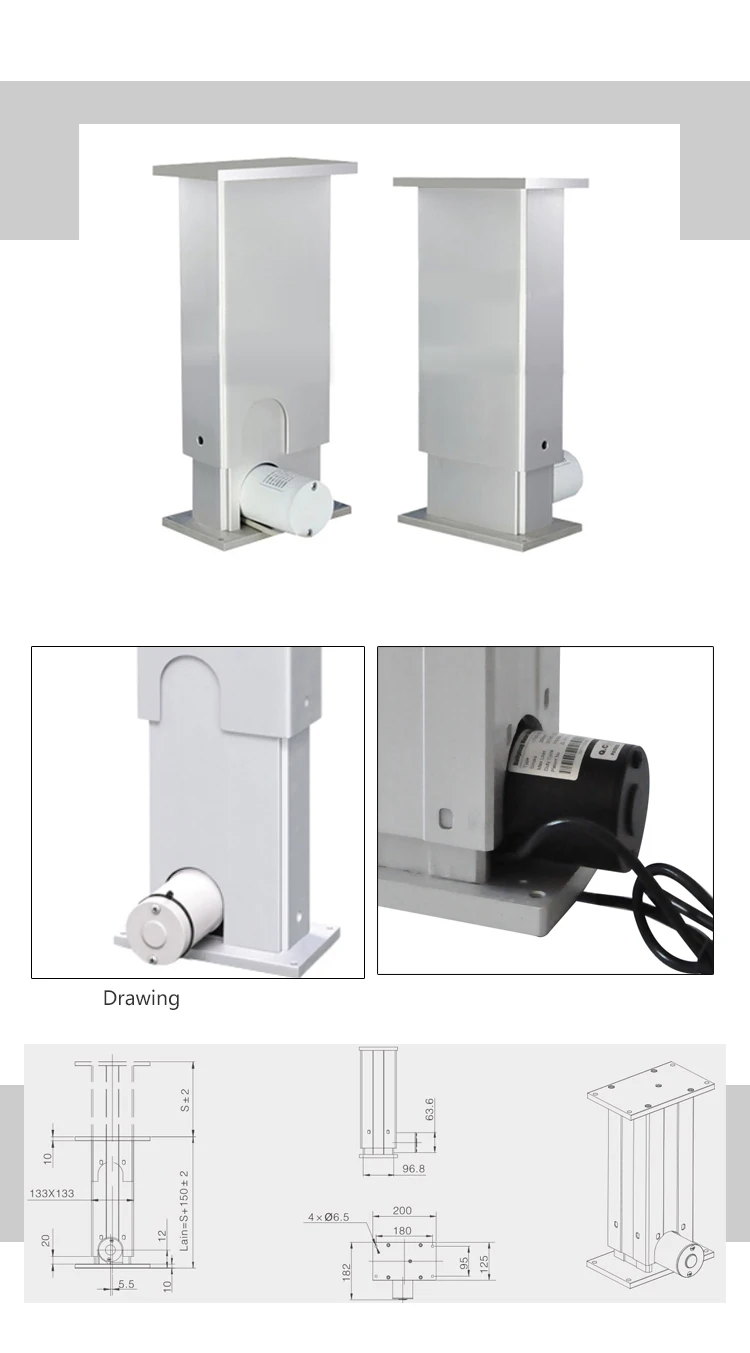

CT Series Linear Actuators (Lifting Column) are widely used in Table height adjustments, TV, Medical Device, Optical equipment and so on.
Specification of ST Series Linear actuators (Lifting Column):
Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive
Standard Stroke: 100/150/200/250/300/350/400 mm, special stroke are available according to customer's requirement.
Max. Thrust: 3000N(CT3000) / 6000N(CT6000)
Free Load Speed: 5mm/s~12mm/s
Rated Load Speed: 5mm/s
Duty cycle: 10%
Ambient temperature -25°C (-13F) to +65°C (149F)
Standard protection class :IP 44
Built-in integral limit switch, not adjustable after leaving factory
Low noise design, dB<53(A); The inspection method is in accordance
with DS/EN ISO3746 while linear actuator is unloaded.
CE Certificated Lifting Column
Section Type Lift Column 12V 24V DC
Rotor, Lead Screw, Aluminium Tube, Plastic Case
Min. Install Dimension
The Lifting column is a device that converts the rotational motion of a low voltage DC motor into linear motion – that is push and pull movements. The electric Lifting column consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more Lifting column , a control box and a control device to operate the actuator
The Lifting column are finding their way into a wide range of applications. When something needs to be raised, lowered, pushed, pulled, rotated, positioned, lifted, shifted or moved, the linear actuators are making an irrefutable case for electrification. These actuators operate more simply, efficiently, cleanly and quietly. And with fewer components to act up or wear out, the Lifting column offer exceptional durability. Despite being perceived as costing more, the actuator actually nets out to be more cost-efficient because of savings on several fronts.
The actuators are used in many different industries, making both work and private life easier for a lot of people. The actuators are ideal for hospital beds, patient lifts, dental chairs, bath lifts and wheelchairs. Office desks, industrial workstations, kitchens, construction and machinery, ventilation and farming solutions,marine applicationssolar tracking systems.
