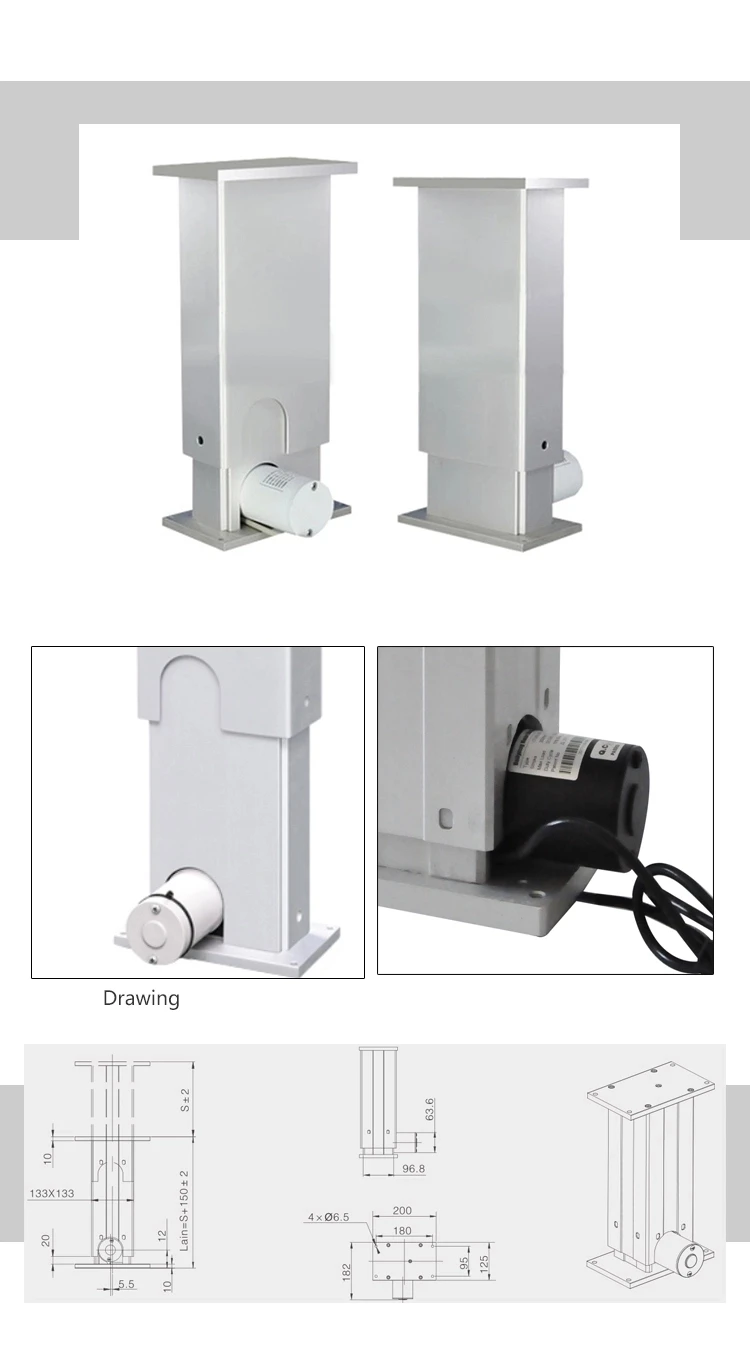

24V Dc Telescopic Linear Actuator Lifting Columns

FOB Reference Price:Get Latest Price
US $5-30 / Set | 1 Set/Sets sample is available (Min. Order)
Supply Ability:
10000 Set/Sets per Month
Port:
Ningbo or Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
Dailymag
Model Number:
CT
Management System:
ISO9001
Certification:
CE,ROHS
Shape:
Linear
Function:
Driving
Type:
lifting column
Voltage:
12V/24VDC
Speed:
5-30mm/s
Thrust:
1000/3000/6000N
Stroke:
100-400mm
Duty Cycle:
10%
Packaging & Delivery
Packaging Details
Standard Export Carton Box or Wooden Box



Product Description

CT Series Linear Actuators (Lifting Column) are widely used in Table height adjustments, TV, Medical Device, Optical equipment and so on.

Specification of ST Series Linear actuators (Lifting Column):

Voltage: 24VDC or 12VDC, Permanent Magnet Motor Drive

Standard Stroke: 100/150/200/250/300/350/400 mm, special stroke are available according to customer's requirement.

Max. Thrust: 3000N(CT3000) / 6000N(CT6000)

Free Load Speed: 5mm/s~12mm/s

Rated Load Speed: 5mm/s

Duty cycle: 10%

Ambient temperature -25°C (-13F) to +65°C (149F)

Standard protection class :IP 44

Built-in integral limit switch, not adjustable after leaving factory

Low noise design, dB<53(A); The inspection method is in accordance

with DS/EN ISO3746 while linear actuator is unloaded.

CE Certificated Lifting Column

Description

Section Type Lift Column 12V 24V DC





Composition

Rotor, Lead Screw, Aluminium Tube, Plastic Case

Model No.

CT1000

CT3000

CT4000

CT6000

Max Thrust

1000N

3000N

4000N

6000N

Standard Stroke

50-600(MM)

50-600(MM)

50-600(MM)

50-600(MM)

Min. Install Dimension

175+Stroke(MM)

175+Stroke(MM)

175+Stroke(MM)

175+Stroke(MM)

Max Pull

750N

2500N

3000N

4500N

Self-Lock

750N

2000N

3000N

4000N

Max Speed

30mm/s

18mm/s

13mm/s

6.5mm/s

Limit Switch

Built-in

Built-in

Built-in

Built-in

Carton size

44.5X32.5X20cm

44.5X32.5X20cm

44.5X32.5X20cm

44.5X32.5X20cm



Working Principle

The Lifting column is a device that converts the rotational motion of a low voltage DC motor into linear motion that is push and pull movements. The electric Lifting column consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more Lifting column , a control box and a control device to operate the actuator

Advantage



The  Lifting column are finding their way into a wide range of applications. When something needs to be raised, lowered, pushed, pulled, rotated, positioned, lifted, shifted or moved, the linear actuators are making an irrefutable case for electrification. These actuators operate more simply, efficiently, cleanly and quietly. And with fewer components to act up or wear out, the Lifting column offer exceptional durability. Despite being perceived as costing more, the actuator actually nets out to be more cost-efficient because of savings on several fronts.



Application



The actuators are used in many different industries, making both work and private life easier for a lot of people. The actuators are ideal for hospital beds, patient lifts, dental chairs, bath lifts and wheelchairs. Office desks, industrial workstations, kitchens, construction and machinery, ventilation and farming solutions,marine applicationssolar tracking systems.
